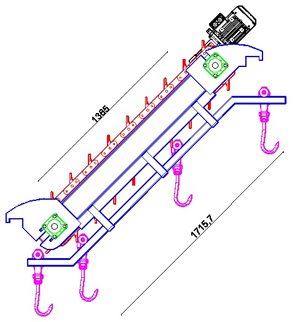

QUARTERING ELEVATOR

Slow and Smooth Operating System
With the help of pushing boots on the sheep slaughtering line at interval of 600 mm ¼ carcasses would be lıfted to 5000mm with the angle of nearly 45 degree. After lifting that will continue on the elevation of 2200m twin rail, at least 2 mt. Sheep slaughtering line is in the power of 10 HP and will be provoked with worm gear. Its speed will be 22 mt/m. 2.2 kW motor driven geared to. Two used with special gear and special chain tensioning system

QUARTERING ELEVATOR Resimleri
